Thermal Printing Product

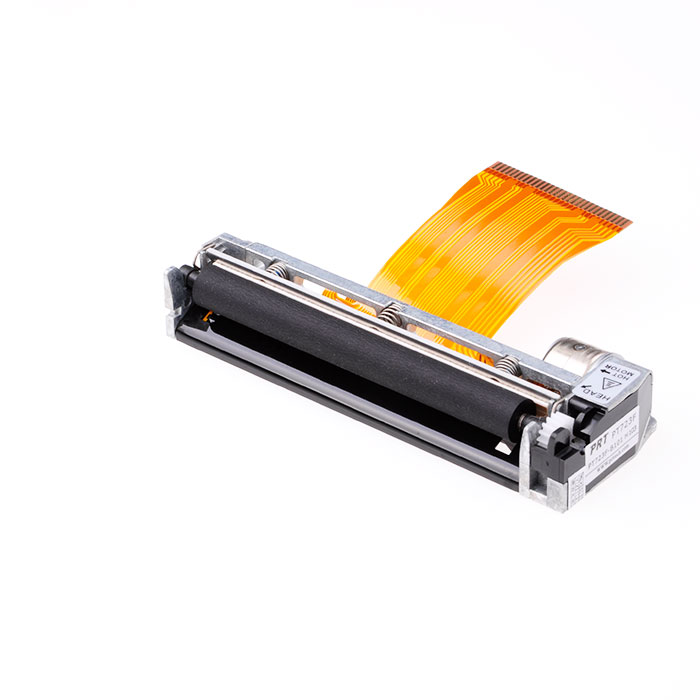

UR723F 80mm Thermal Printing Product
UR 3-inch UR723F: compact external dimensions, widely used in the medical and POS industries; the detachable rubber roller (platen) design makes paper loading simple; mechanical wear resistance reaches 50 km or longer.
- Paper Width
- 80 mm
- Printing Speed
- 80 mm/sec (at 8.5V)
- Dot Density
- 8 dots/mm
- Printing Method
- Line Thermal
Tell us your quantity, interface and intended application.
PRODUCT OVERVIEW
Product Introduction
Detachable platen (paper roller) design; Compact and delicate design; Easy paper loading structure; 90-degree vertical paper feed
Low-voltage power supply
The logic voltage for driving the thermal head is 3.0~5.25V and the heating operation voltage is 4.2~8.5V; it can be powered by 4 to 6 NiCd or Ni-MH batteries, or by two lithium batteries.
Compact size
Small external dimensions, convenient for portable applications. Dimensions: 91.7 mm (W) × 32.7 mm (D) × 15.5 mm (H).
High-definition printing
High-density print head, 8 dots/mm, delivering more precise and clearer results than dot-matrix printing.
Fast printing speed
Different printing speeds can be set according to customer requirements, depending on the driving energy and the thermal sensitivity of the thermal paper used; up to 80 mm/sec.
Easy paper loading structure
The detachable rubber roller (platen) design makes paper loading simple.
Low noise
Compared with dot-matrix printing, thermal printing is more suitable for environments with noise restrictions.
TECHNICAL DETAILS
Specifications
Printing
| Printing Method | Line Thermal |
|---|---|
| Paper Feed Direction | 90 degrees vertical |
| Dots/Line | 576 dots/line |
| Dot Density | 8 dots/mm |
| Effective Printing Width | 72 mm |
| Printing Speed | 80 mm/sec (at 8.5V) |
| Character Matrix, Chars/Line | 12×24 dots, 48 chars/line; 24×24 dots, 28 chars/line; 8×16 dots, 72 chars/line; 16×16 dots, 36 chars/line |
Paper
| Paper Width | 80 mm |
|---|---|
| Paper Thickness | 60 ~ 100 μm |
| Paper Loading | Easy paper loading |
Power Supply
| Print Head | 4.2V ~ 8.5V, average 1.37A (at 7.2V) |
|---|---|
| Motor | 4.2V ~ 8.5V, max 1A |
| Logic | 3.0V ~ 5.25V, max 0.1A |
Dimensions & Weight
| Dimensions (W×D×H) | 91.7 × 32.7 × 15.5 mm |
|---|---|
| Weight | 62 g |
Reliability
| Life | 110 million pulses or more (print ratio = 12.5%); 50 km or longer |
|---|
Operating Environment
| Operating Temperature | 0°C ~ 50°C |
|---|---|
| Operating Humidity | 20 ~ 85% RH |
| Storage Temperature | -20°C ~ 60°C |
| Storage Humidity | 5 ~ 90% RH |
Detection
| Print Head Temperature Detection | Thermistor |
|---|---|
| Paper End Detection | Photo-electric detection |
| Head Home Position Detection | Photo-electric detection |
