Thermal Printer Mechanism

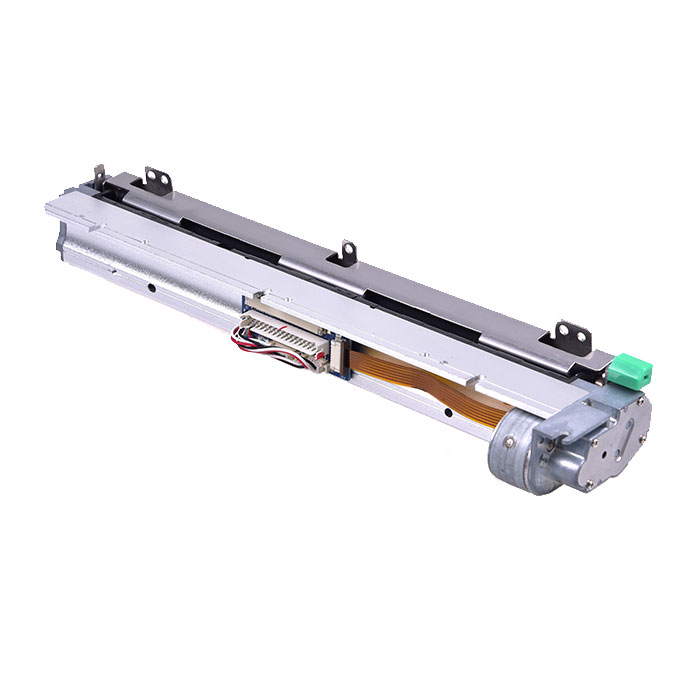

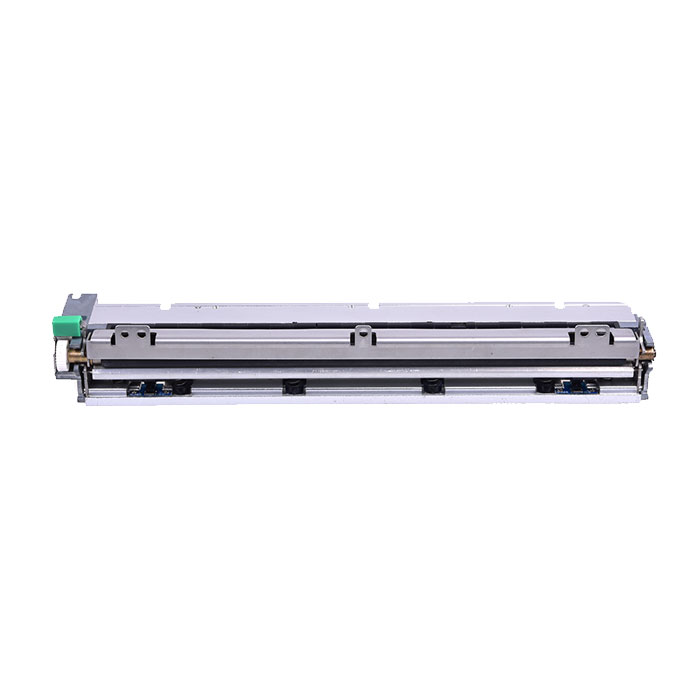

UR2161P Thermal Printer Mechanism
UR 8-inch UR2161P A4 thermal printer mechanism, high-density print head, resolution 203 dpi, suitable for medical device products; printing speed is adjustable, low noise; thermal printing is more suitable for environments with noise restrictions.
- Paper Width
- 210 ~ 216 mm
- Dot Density
- 8 dots/mm
- Printing Method
- Line Thermal
- Dots/Line
- 1728 dots
Tell us your quantity, interface and intended application.
PRODUCT OVERVIEW
Product Introduction
Easy paper loading structure; Compact and delicate design; Supports label paper and thermal paper printing; Curved paper feed path
Low-voltage power supply
The logic voltage for driving the thermal head is 3.0~5.0V and the heating operation voltage is 24V.
High-definition printing
High-density print head, 8 dots/mm; compared with dot-matrix printing, it can produce more precise and clearer results.
Fast printing speed
Different printing speeds can be set according to customer requirements, depending on the driving energy and the thermal sensitivity of the thermal paper used; up to 50 mm/sec.
Easy paper loading structure

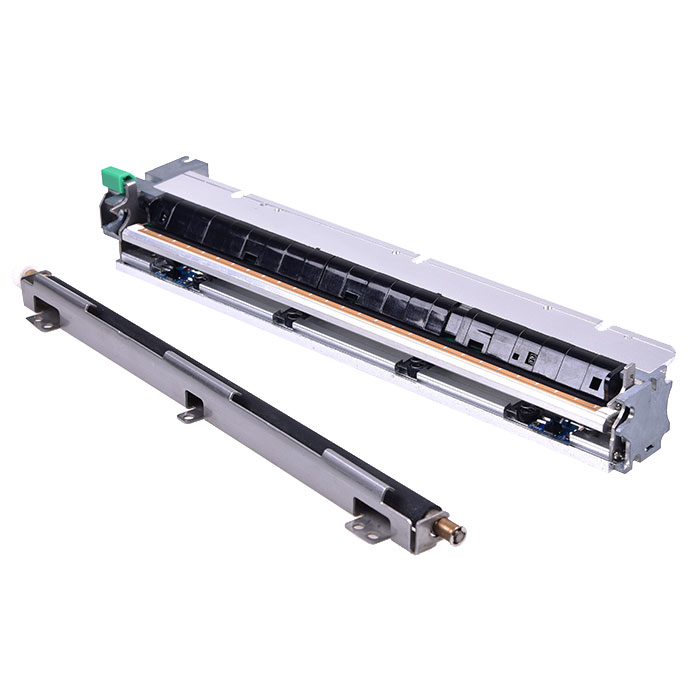

The detachable rubber roller (platen) design makes paper loading simple.
Low noise
Compared with dot-matrix printing, thermal printing is more suitable for environments with noise restrictions.
TECHNICAL DETAILS
Specifications
Printing
| Printing Method | Line Thermal |
|---|---|
| Dots/Line | 1728 dots |
| Dot Density | 8 dots/mm |
| Printing Width | 216 mm |
| Max Printing Speed | 50 mm/sec |
| Paper Feed Pitch | 0.125 mm |
| Noise | 50 ~ 55 dB (at 25 mm/sec) |
| Print Head Temperature Detection | Thermistor |
| Paper End Detection | Photo-electric detection |
| Shaft Home Position Detection | Mechanical switch |
| Recommended Paper | PD160R (OJI Paper Co., Ltd.) |
Paper
| Paper Width | 210 ~ 216 mm |
|---|
Dimensions & Weight
| Dimensions W*D*H (mm) | 264.5 * 55.9 * 37.3 |
|---|
Life Span (at 25°C with constant energy)
| Pulse Count | 100 million pulses or more (print ratio = 12.5%) |
|---|---|
| Mechanical Wear Resistance | 50 km or longer |
| Operating Temperature (°C) | 0 ~ 50 |
| Operating Humidity (RH) | 20% ~ 85% |
| Storage Temperature (°C) | -20 ~ +60 |
| Storage Humidity (RH) | 5% ~ 90% |
Related models
UR1043P
UR1043P 114mm Thermal Printer Mechanism
UR 4-inch UR1043P mini printer mechanism, heating voltage 4.2~10V, compact size, suitable for products such as ECG machines and patient monitors.
- Paper Width
- 114 mm
- Printing Speed
- 70 mm/sec (max.)
- Dot Density
- 8 dots/mm
- Printing Method
- Line Thermal
UR486F
UR486F 80mm Thermal Printer Mechanism
UT 2-inch PT486F thermal receipt printer mechanism: the logic voltage for driving the thermal head is 2.7~5.25V, the heating operation voltage is 4.2~8.5V, the effective printing width is 72 mm, the paper width is 57.5±0.5 mm, and the paper feed accuracy is 0.0625 mm.
- Paper Width
- 80 mm
- Effective Printing Width
- 72 mm
- Printing Speed
- 120 mm/sec (at 24V)
- Dot Density
- 8 dots/mm
UR48A

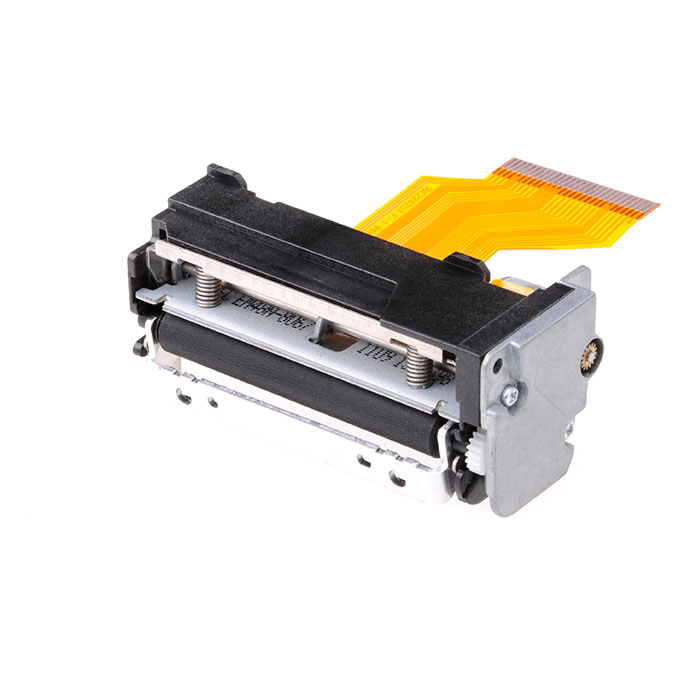

UR48A 58mm Thermal Printer Mechanism
