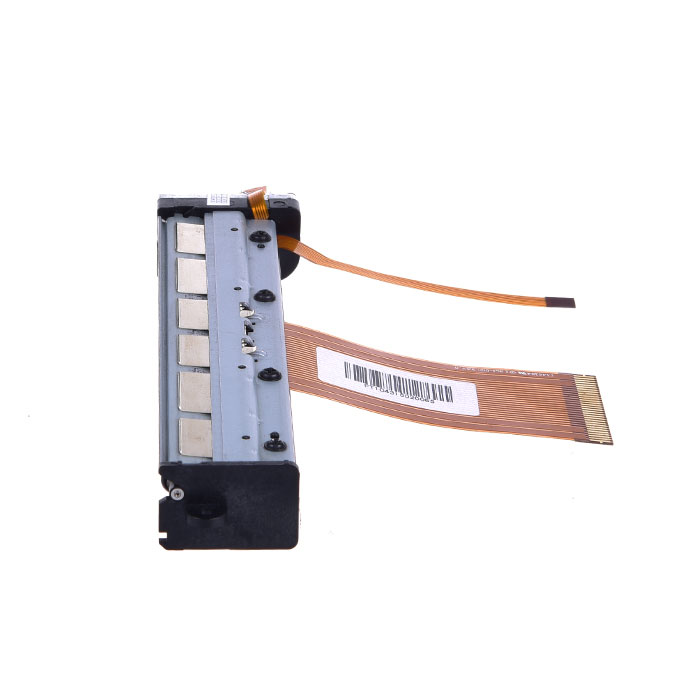

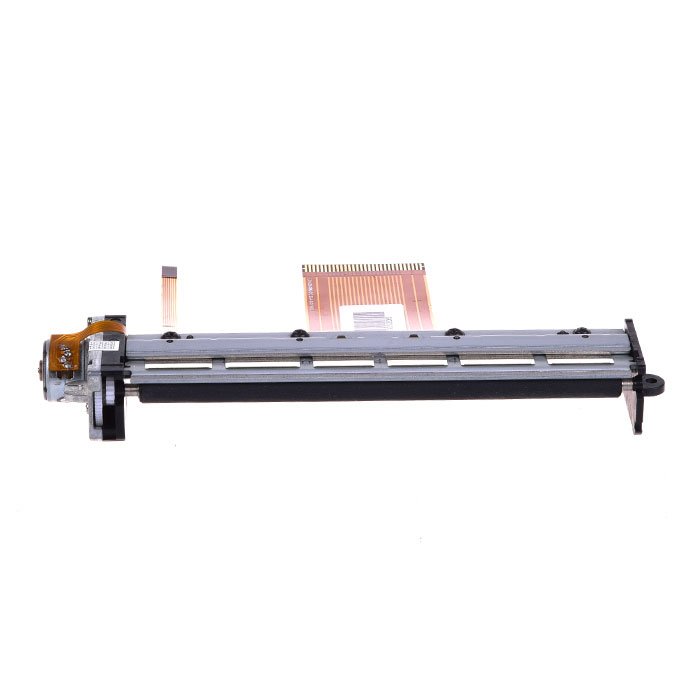

Select a view · Click the main image to enlarge
Thermal Printer Mechanism
UR1043P 114mm Thermal Printer Mechanism
UR 4-inch UR1043P mini printer mechanism, heating voltage 4.2~10V, compact size, suitable for products such as ECG machines and patient monitors.
- Paper Width
- 114 mm
- Printing Speed
- 70 mm/sec (max.)
- Dot Density
- 8 dots/mm
- Printing Method
- Line Thermal
Tell us your quantity, interface and intended application.
PRODUCT OVERVIEW
Product Introduction
Easy paper loading structure; Supports label paper and thermal paper printing; Compact design suitable for handheld devices
Low-voltage power supply
The logic voltage for driving the thermal head is 4.2~8.5V and the heating operation voltage is 5V; it can be powered by 4 to 6 NiCd or Ni-MH batteries, or by two lithium batteries.
Compact size
Small external dimensions. Dimensions: 143.6 mm (W) × 31.4 mm (D) × 18.5 mm (H).
High-definition printing
High-density print head, 8 dots/mm, delivering more precise and clearer results.
Fast printing speed
Different printing speeds can be set according to customer requirements, depending on the driving energy and the thermal sensitivity of the thermal paper used; up to 85 mm/sec.
Easy paper loading structure

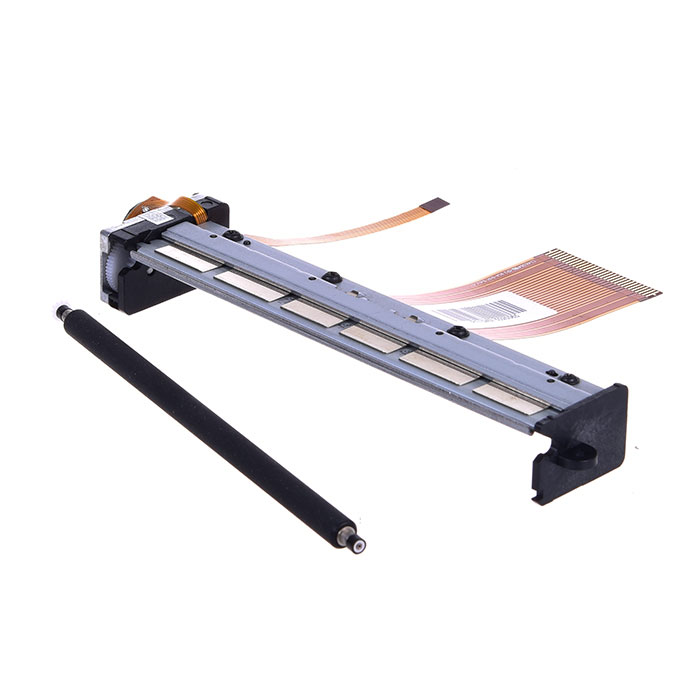

The detachable rubber roller (platen) design makes paper loading simple.
Low noise
Compared with dot-matrix printing, thermal printing is more suitable for environments with noise restrictions.
TECHNICAL DETAILS
Specifications
Printing
| Printing Method | Line Thermal |
|---|---|
| Dots/Line | 832 dots |
| Dot Density | 8 dots/mm |
| Printing Width | 104 mm |
| Paper Feed Pitch | 0.0625 mm |
| Recommended Paper | PD160R (OJI Paper Co., Ltd.) |
| Printing Speed | 70 mm/sec (max.) |
| Print Head Temperature Detection | Thermistor |
| Paper End Detection | Photo-electric detection |
Paper
| Paper Width | 114 mm |
|---|
Life Span (at 25°C with constant energy)
| Pulse Count | 100 million pulses or more (print ratio = 12.5%) |
|---|---|
| Mechanical Wear Resistance | 50 km or longer |
| Operating Temperature (°C) | 0 ~ 50 |
| Operating Humidity (RH) | 20% ~ 85% |
| Storage Temperature (°C) | -20 ~ +60 |
| Storage Humidity (RH) | 5% ~ 90% |
