Thermal Printer Mechanism

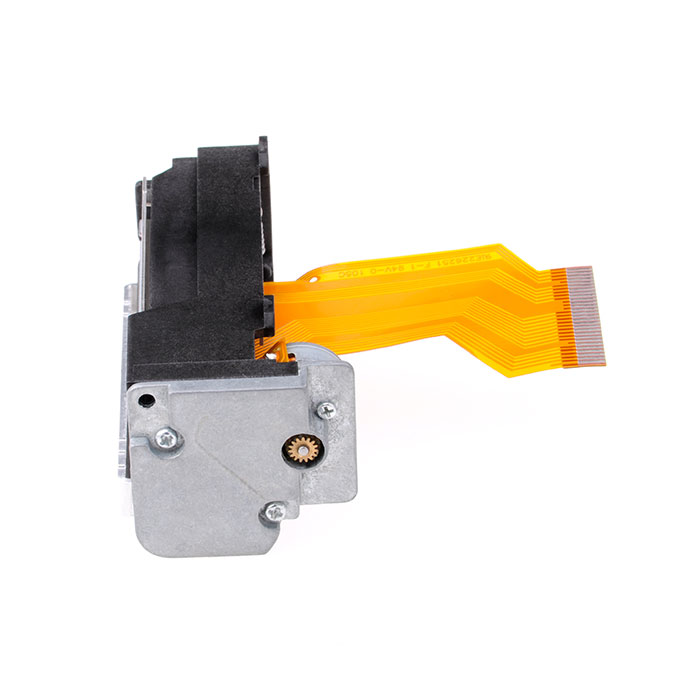

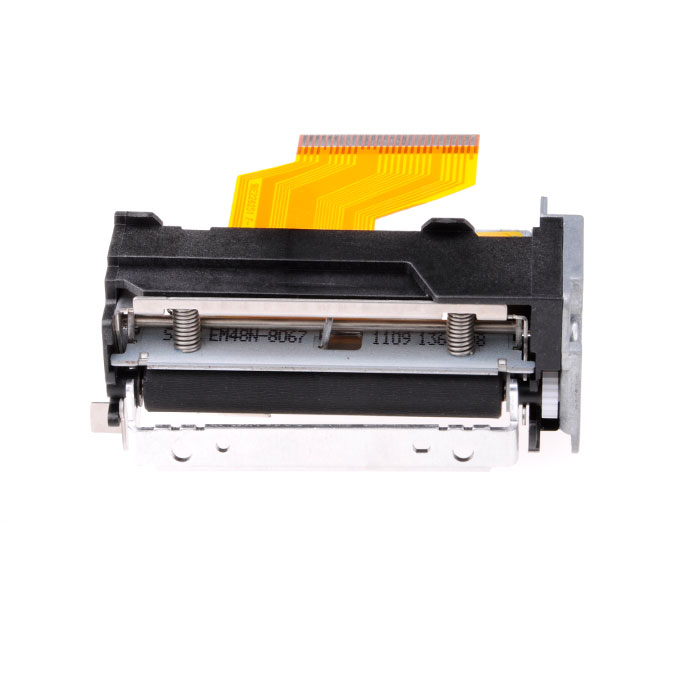

UR48A 58mm Thermal Printer Mechanism
UR 2-inch UR48A direct thermal printer mechanism: low noise, sturdy and durable, high-speed printing at 90 mm/sec (8.5V), easy paper loading structure, 90-degree vertical paper feed, a printing speed of up to 90 mm/sec, high-definition printing results and a very compact size.
- Paper Width
- 58 mm
- Effective Printing Width
- 48 mm
- Printing Speed
- 90 mm/sec (at 8.5V)
- Dot Density
- 8 dots/mm
Tell us your quantity, interface and intended application.
PRODUCT OVERVIEW
Product Introduction
Low noise, sturdy and durable, high-speed printing 90 mm/sec (8.5V), easy paper loading structure, 90-degree vertical paper feed
Low-voltage power supply
The logic voltage for driving the thermal head is 2.7~5.5V and the heating operation voltage is 4.2~8.5V; it can be powered by 4 to 6 NiCd or Ni-MH batteries, or by two lithium batteries.
Compact size
Small external dimensions, convenient for portable applications. Dimensions: 69.2 mm (W) × 28.3 mm (D) × 31.7 mm (H).
High-definition printing
High-density print head, 8 dots/mm, delivering more precise and clearer results than dot-matrix printing.
Fast printing speed
Different printing speeds can be set according to customer requirements, depending on the driving energy and the thermal sensitivity of the thermal paper used; up to 90 mm/sec.
Easy paper loading structure

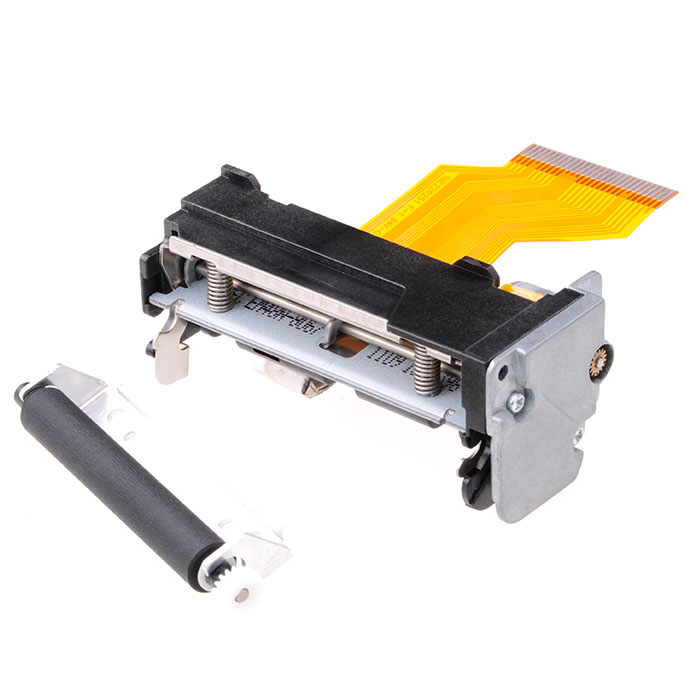

The detachable rubber roller (platen) design makes paper loading simple.
Low noise
Compared with dot-matrix printing, thermal printing is more suitable for environments with noise restrictions.
TECHNICAL DETAILS
Specifications
Printing
| Printing Method | Line Thermal |
|---|---|
| Dots/Line | 384 dots/line |
| Dot Density | 8 dots/mm |
| Printing Speed | 90 mm/sec (at 8.5V) |
| Effective Printing Width | 48 mm |
| Character Matrix, Chars/Line | 12×24 dots, 32 chars/line; 24×24 dots, 16 chars/line; 8×16 dots, 48 chars/line; 16×16 dots, 24 chars/line |
Paper
| Paper Width | 58 mm |
|---|---|
| Paper Thickness | 60 ~ 100 μm |
| Paper Loading | Easy paper loading |
Power Supply
| Print Head | 4.2V ~ 8.5V, average 1.8A (at 5V), 2.6A (at 7.2V), 2.8A (at 8.0V); max 2.1A (at 5V), 3.0A (at 7.2V), 3.3A (at 8.0V) |
|---|---|
| Motor | 4.2V ~ 8.5V, max 0.46A |
| Logic | 2.7V ~ 5.5V, max 0.01A |
Dimensions & Weight
| Dimensions (W×D×H) | 69.2 × 28.3 × 31.7 mm |
|---|---|
| Weight | 53 g |
Reliability
| Life | 110 million pulses or more (print ratio = 12.5%); 50 km or longer |
|---|
Operating Environment
| Operating Temperature | 0°C ~ 50°C |
|---|---|
| Operating Humidity | 20 ~ 85% RH |
| Storage Temperature | -25°C ~ 70°C |
| Storage Humidity | 5 ~ 90% RH |
Detection
| Print Head Temperature Detection | Thermistor |
|---|---|
| Paper End Detection | Photo-electric detection |
