Thermal Printer Mechanism

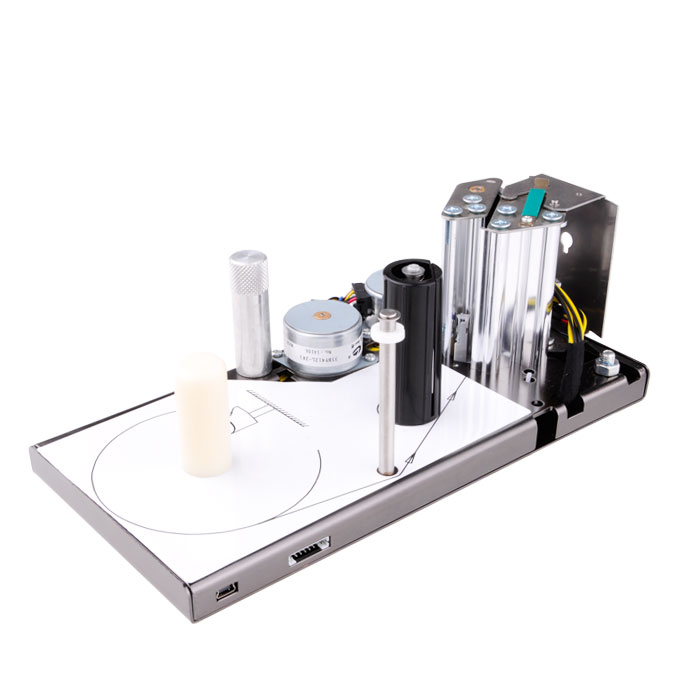

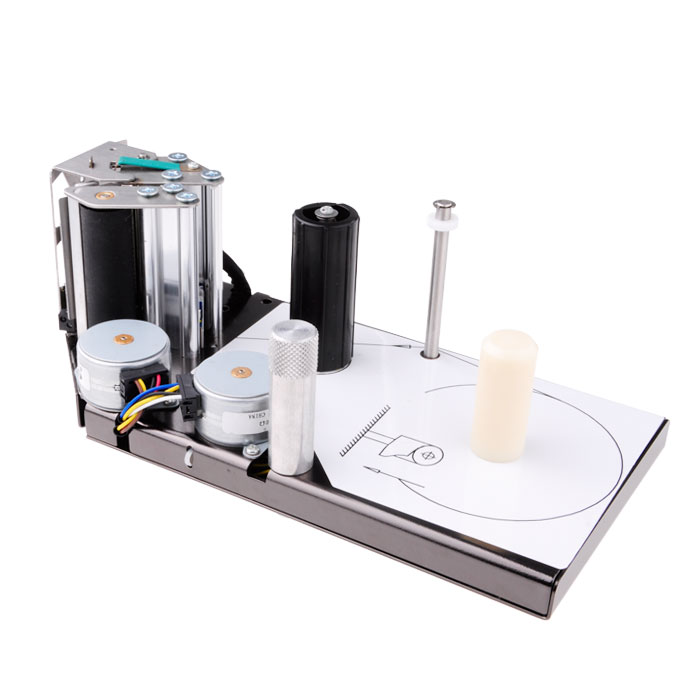

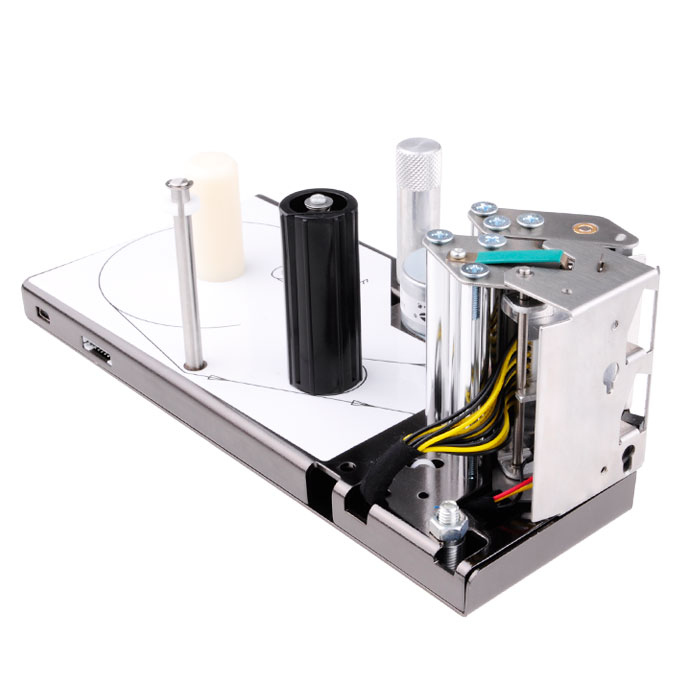

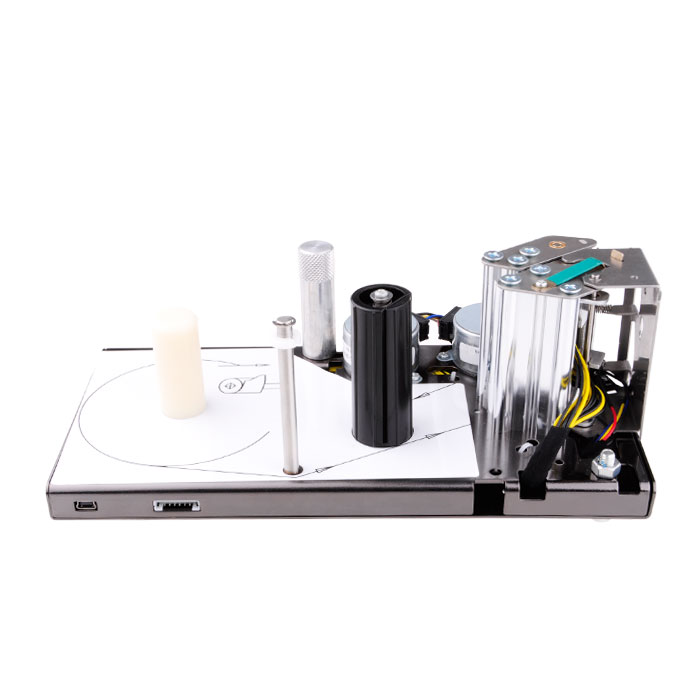

UR561P Thermal Printer Mechanism
UR 2-inch UR561P label printer mechanism, easy paper loading, can automatically peel labels and rewind the liner, ultra-high-speed printing up to 150 mm/sec, applied to medical test tube label printing, shelf label printing, etc.
- Paper Width
- 30-62 mm
- Printing Speed
- 100 ~ 150 mm/sec
- Printing Method
- Thermal line printing
- Resolution
- 8 dots/mm (203DPI)
Tell us your quantity, interface and intended application.
PRODUCT OVERVIEW
Product Introduction
Simple paper loading structure; With label peeling function and liner rewind function; High-speed printing 150 mm/sec; Supports user download of bitmap to Flash; Supports label verification function
Precautions for Use
The printer should be installed on a flat and stable place;
Avoid placing the printer in places with vibration and impact;
Leave enough space around the printer for operation and maintenance;
The printer should be kept away from water sources and avoid direct sunlight, strong light and heat sources;
Do not use or store the printer in places with high temperature, high humidity or serious pollution;
If the printer is not used for a long time, please disconnect the printer power supply;
The printer must not print without paper, otherwise the print head will be seriously damaged;
To ensure printing quality and product life, it is recommended to use the recommended paper or paper of equivalent quality;
Under the condition of meeting the use requirements, it is recommended to set the printing density as low as possible, so as not to affect the service life of the print head;
Do not allow humid air to condense on the surface of the printer; if condensation has formed, do not turn on the printer power before the dew disappears;
Prevent water or conductive substances (such as metal) from entering the interior of the printer; once this happens, turn off the power immediately;
When plugging or unplugging each interface, the power must be turned off, otherwise the printer control circuit may be damaged;
Users must not disassemble the printer for repair by themselves.
TECHNICAL DETAILS
Specifications
Printing
| Printing Method | Thermal line printing |
|---|---|
| Resolution | 8 dots/mm (203DPI) |
| Printing Width | 56 mm |
| Printing Speed | 100 ~ 150 mm/sec |
| Memory | 1MB, 2MB, 4MB flash |
| Interface | Serial port, supports parallel port |
| Printing Mode | Line printing mode, page printing mode |
| Font Support | English, Simplified Chinese, Traditional Chinese, Japanese, Korean |
| Custom Font | User can define fonts and download them to RAM |
| Abnormal Detection | Paper end detection / black mark detection |
| Printable Barcodes | UPC-A, UPC-E, code 39, code 93, code 128, codebar, EAN-13, EAN 8; 2D: QR code, PDF417 |
| Character Expansion | Horizontal and vertical bidirectional expansion |
| Character Processing | Rotated printing (0°, 90°, 180°, 270°) |
| Bitmap Processing | Supports user-defined 64KB flash bitmap and RAM bitmap |
| Paper Roll Outer Diameter | Φ120 mm max. |
| Paper Roll Inner Diameter | Thermal label paper Φ25.4 mm or Φ38.1 mm; Thermal paper Φ25.4 mm or Φ38.1 mm |
| Paper Taking-off Method | Rewind |
| Working Voltage | 24VDC±10% |
| Current Consumption | Average 1.5A (12.5%) |
| Operating Temperature & Humidity | 5 ~ 45°C, 20 ~ 90%RH (40°C) |
| Storage Temperature & Humidity | -40 ~ 60°C, 20 ~ 93%RH (40°C) |
| External Dimensions | 238.4 (L)*118.2 (W)*97.2 (H) mm |
Paper
| Paper Type | Thermal label paper or thermal ordinary roll paper |
|---|---|
| Paper Width | 30-62 mm |
| Paper Thickness | 0.06-0.16 mm |
Dimensions & Weight
| Weight | 1383g |
|---|
